Comm-Port CPAS Under Vehicle Inspection System (UVIS)
As global security threats continue to rise, advanced technology is critical in mitigating risks such as Vehicle as a Weapon (VAW), Improvised Explosive Devices (IEDs), Vehicle-Borne Explosive Devices (VBIEDs), Under-Vehicle IEDs (UVIEDs), and other high-stakes attack scenarios.
The Comm-Port CPAS Area Scan under vehicle inspection system is an indispensable component of any Project Security Plan, designed to fortify Vehicle Access Control Points (VACPs) and Publicly Accessible Locations (PALs).
Since Comm-Port launched the world's first under vehicle surveillance system 28 years ago, it has been continually improved and includes regular new features.
The CPAS range is the first under vehicle screening system to be NIAP compliant - providing secure connections between computer systems to mitigate cyber threats.
Key Features:
- Advanced Colour Area Scan Technology
- Colour/Monochrome/Inverted Colour View Options
- Capture at Vehicle speeds up to 45 mph / 75 kmph
- Handles load weights up to 78 tons
- Ultra-fast throughput for quicker analysis
- High resolution Megapixel Images
- Micro controlled and adaptive LED Lighting
- No limits on vehicle length
- IP68 & Temp Rated 40°C to +74°C rated
Rust resistant diamond plate
- Scan images up to 500-900 FPS
- Built-in LPR / Driver image / Scene camera support
- Multiple lane support for central security head end
- NIAP Compliant against cyber threats
- Latest AI technology used for automatic anomaly detection
and alerting
- Full API and Existing Certified Integrations

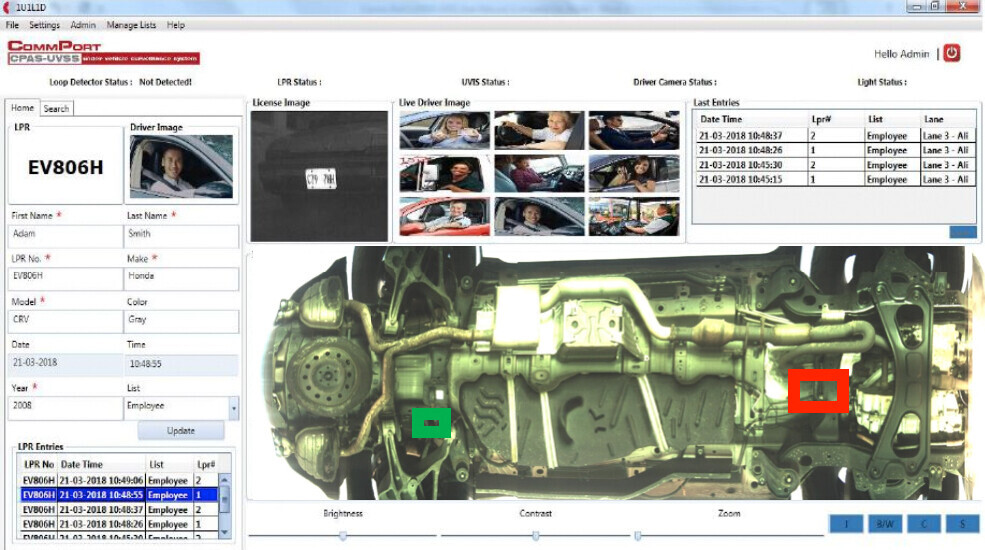

CPAS UVIS Software, A Screen Shot of Control Room Display.
Comm Port CPAS UVIS Software:
- 12th Gen Intel 12-Core i7, 16GB, DDR5 Processor
- Microsoft Windows 11 with Full SQL
- 1TB Storage (approx 500,000 events)
- Stand-alone or Network Configuration
- Site/Multi-Site Topology
- Meets International Standards for Network Architecture
- AMS - Adaptable Matrix Software
- ACDM - Automatic Change Detection Module
- Proprietary Pattern Recognition algorithms
- Proprietary Image registration
- Advanced Analyzation of two or more images
- Identification of Material Differences
- Utilisation of complex Multiple Step Image Normalisation
- Rigid / Non-Rigid Registration
- Comparison of Partially Dissimilar
- One Time Perpetual Licensing
- Multilevel User Permissions
- Red/Green and Customer lists
- 64X Zoom with additional Spot Zoom
- Database and Report Wizards
- API & Many Factory Certified Integrations Available
Specifications subject to change without notice
How the Comm-Port CPAS UVIS cameras and UVIS target vehicles for security screening.
CPAS UVIS Commbox, LPR Camera, Driver Image Camera
Comm Port CPAS - COMMBOX
- Loop Controller Module
- Power Supplies
- I/O Relay Controller
- NEMA 4X Enclosure with Lock
- Cable Glands/Fan and Sunshield
- DIN Rail Mounts
- Optional Fibre Tx/Rx
- Cable Management and space for optional equipment
Comm Port CPAS - LPRCAM
- 0-190mph/300kmph Vehicle Capture Speed
- 4.8-84mm variable Focal Lens
- 164 ft./50m IR Range - Steady or Pulse
- Over 190 Country plate recognised including Government and specialised plates
- IP67/IK10
- Vehicle Make & Model ID
Comm Port CPAS - DIC CAM
- Driver Image/Scene Camera
- 8MP Colour
- IR with 98 ft. / 30M Range
- 2D/3D DNR
- BLC/WDR/Defog/ICR
- 1/2"CMOS
- See-Thru Tint and Glare

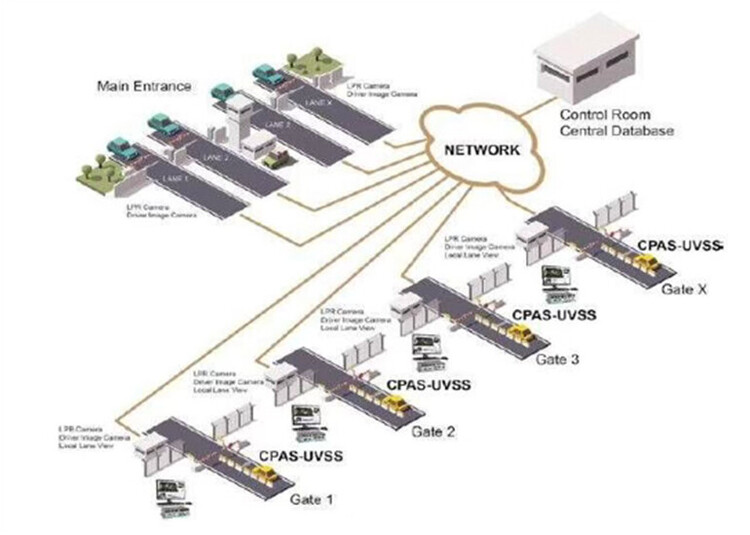

An example of a full-featured Comm-Port CPAS UVIS, LPR and DIC Layout
Sample Licence Plates from Comm-Port CPAS UVIS LPR Cameras.

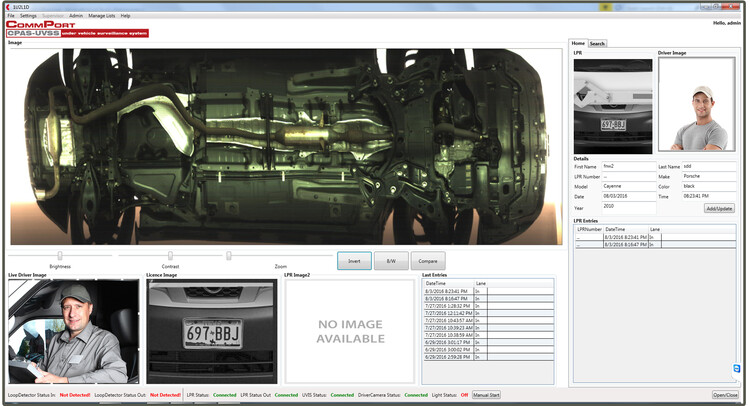

A screenshot of the Comm-Port CPAS control room screen, showing the UVIS, LPR and DIC feeds.
Comm-Port's bespoke code allows for automatic anomaly alerts on the control room screen.
CPAS - Advanced Imaging Technology
- High-resolution colour area scan with colour/monochrome/inverted view options.
- Capture vehicles at speeds of up to 45 mph (75 km/h).
- High-definition images with scan rates of 500-900 frames per second (FPS).
CPAS - Robust Design & Durability
- Handles vehicle loads up to 78 tons.
- IP68-rated with a temperature range of 40°C to +74°C. Rust-resistant diamond plate construction for long-term reliability.
- Sapphire crystal scratch resistant lenses.
CPAS - Enhanced Security Integration
- Built-in Licence Plate Recognition (LPR), driver image capture, and scene camera support.
- Multi-lane capabilities with centralized security head-end integration.
- AI-powered anomaly detection for advanced threat identification and automatic alert.
- World's first NIAP compliant UVIS.
CPAS - Seamless Efficiency
- Ultra-fast throughput for rapid analysis and operational efficiency.
- Adaptive LED lighting for clear imaging under all conditions.
CPAS - Open Architecture
- Full API support with certified integrations for existing security systems.
- World's first NIAP compliant UVIS - delivering secure connections end-to-end, nullifying cyber threats.
CPAS - In-House Software
- All CPAS software code is owned by us and written and developed in-house.
- Fully compatible with all major software.
CPAS - Global Support & Training
- With resources around the globe, pre-sales, sales, after-sales, installation and warranty support is second to none.
- Extended warranties available.
- On-site installation support and operator training available.
CPAS - Reseller Support
- TechMondial provides full project support for its partners, in territory and in sector. In additional to market-leading pre- and post-sales support, this also includes preferential financial incentives.
- We do everything we can to support your successful bid.
About Comm-Port CPAS UVIS
Since 1998, Comm-Port CPAS has set the global standard for dependable under vehicle surveillance solutions.
Renowned for innovation, reliability, and superior customer support, Comm-Port products are deployed across a diverse range of security environments worldwide.
Key highlights:
- Unmatched Quality and Affordability: Products engineered to the highest standards while remaining cost-effective.
- Comprehensive Support: From basic UVSS systems to full-service installation and servicing contracts, every and every client receives a bespoke, tailored solution.
- Commitment to Excellence: State-of-the-art performance in UVIS/UVSS, License Plate Readers (LPR), and Driver Image Capture (DIC) technologies.
Why Choose TechMondial & Comm-Port?
At TechMondial, we are proud to supply Comm-Port's industry-leading under vehicle screening technology.
Our shared mission is to empower clients with cutting-edge physical security systems that adapt to the unique challenges of today's global threat environment.
Over twenty years of area scan UVSS expertise at your fingertips.
Discover how the Comm-Port CPAS under vehicle screening can enhance your security infrastructure by contacting our experts today.
The Comm-Port CPAS Under Vehicle Inspection System (UVIS) is in stock and ready to ship for Urgent Operational Requirements (UORs) or standard orders.
Minimum order quantity (MOQ) : 1 unit.
To explore how the Comm-Port CPAS Under Vehicle Inspection System can enhance your, or your client's, security operations, contact our team of friendly experts today.
